Bold 8 Gang Switch Panel
Price: 1299.00 1200.00 AED
Part Number: BT-JG-KZ-CP-8-RGB-ACC
Off-Road Vehicle Customization
Fabrication and Bodywork
Product Overview
Built for off-road power, this 8-gang switch panel combines panel, remote, and app control. With 12V/24V support and 1440W peak power, it controls high-power lights, winches, and more, upgrading your vehicle’s electrical system for any adventure.
Working Voltage：DC12/24V

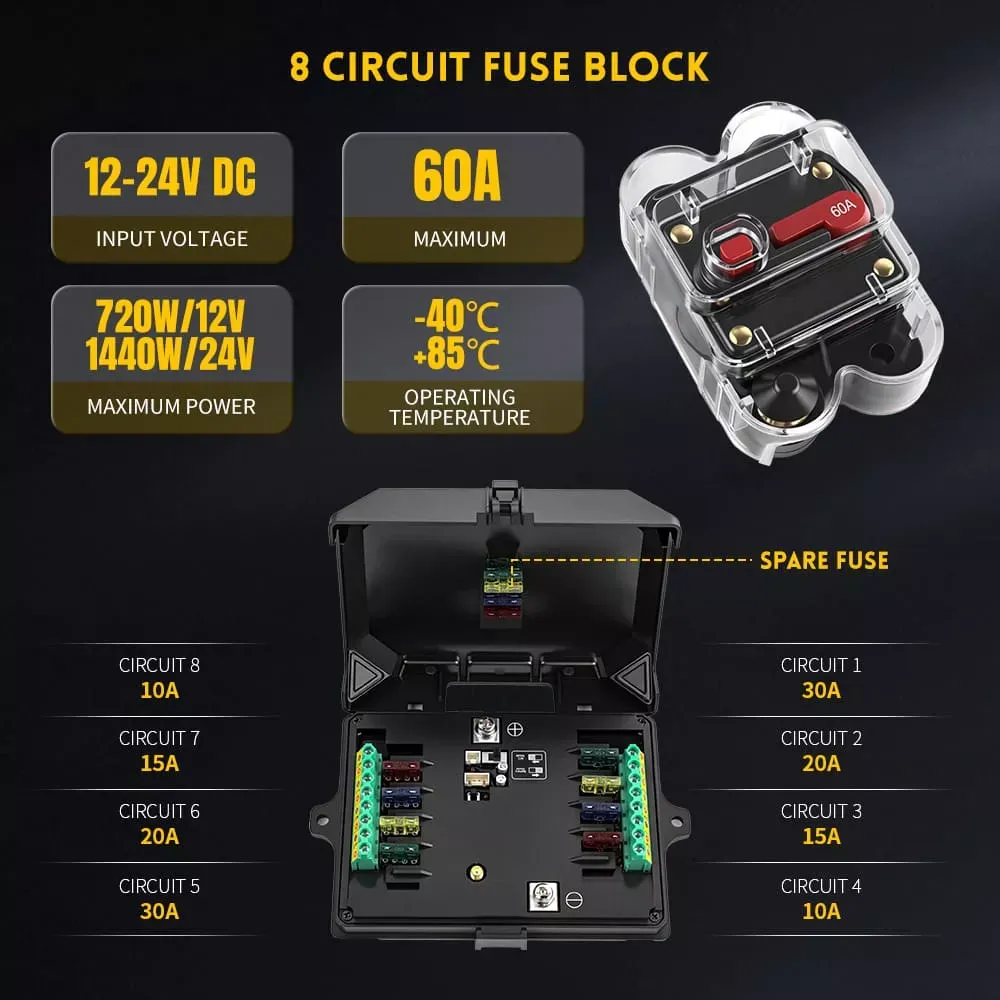

Circuit Allocation：30A*1,20A*2,15A*2,10A*1
ACC Included：Acc
Max Operating Total Current：60A
Max Total Operating Power：12V@720W,24V@1440W
Control Function：On-Off/Strobe
Upgrade version：Flash & Strobe speed adjustable
Control Distance：70M/230FT
Controller：Panel key & Remote Control
Panel Back Lighting：Single Color,RGB Color
Panel Light Brightness Function：On-Off

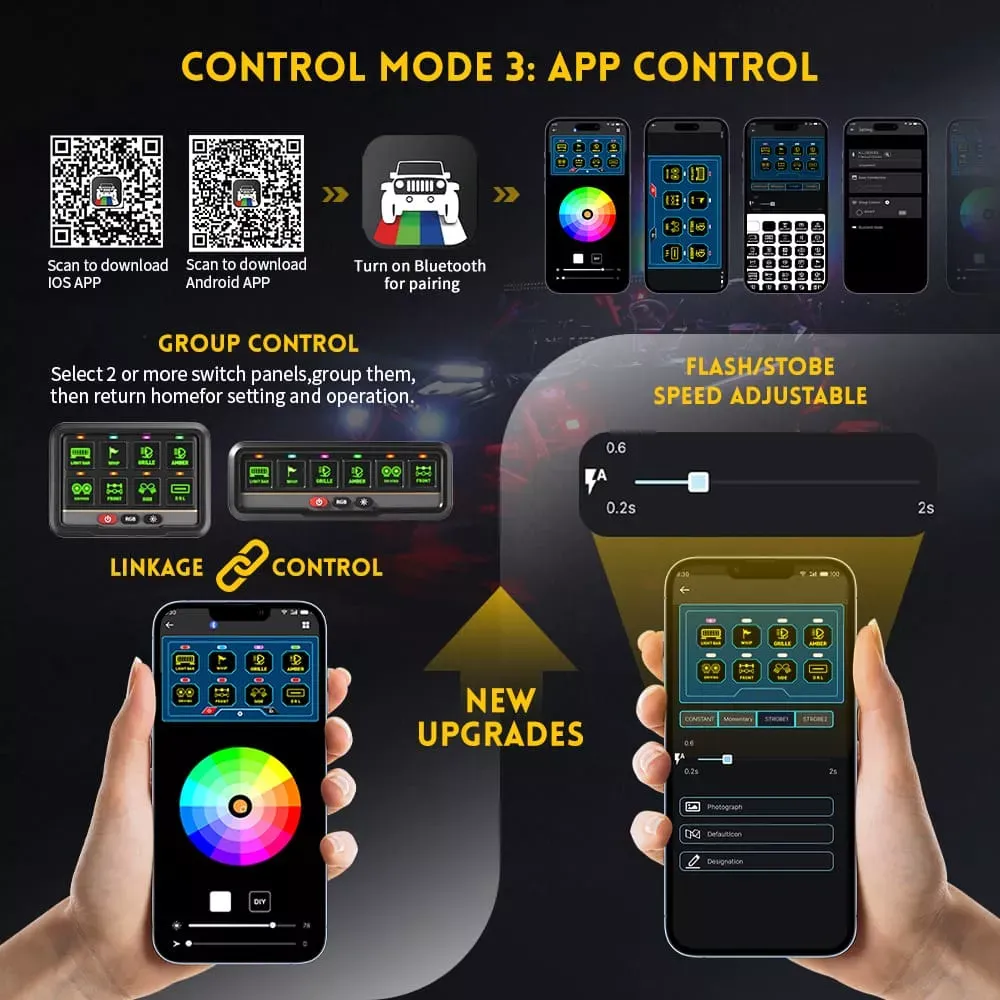

Three Control Methods & RGB Backlighting
Choose from three control options: direct panel, wireless remote, or smartphone app. Customize the RGB backlighting with five brightness levels (100%, 75%, 50%, 25%, and 10%) to create the perfect ambiance.
Advanced Control Modes
Switch between four modes to match your lighting needs:
-Toggle Mode (Red): One-touch activation/deactivation.
-Momentary Mode (Blue): Activates when the button is held.
-Flash Mode (Purple): Slow flashing, ideal for turn signals.(adjustable flash frequency via the app).
-Strobe Mode (Green): High-speed strobing for warning or emergency signaling.
